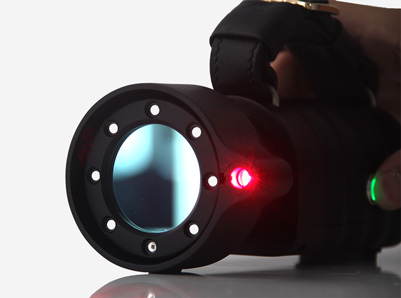

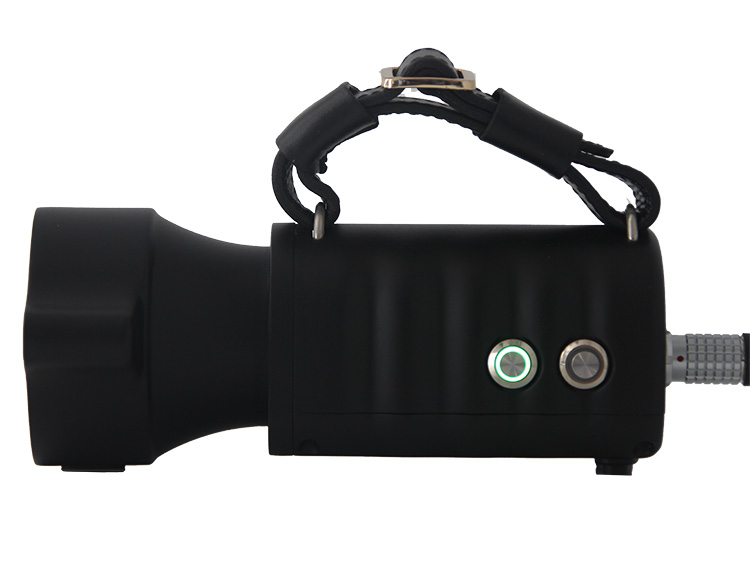

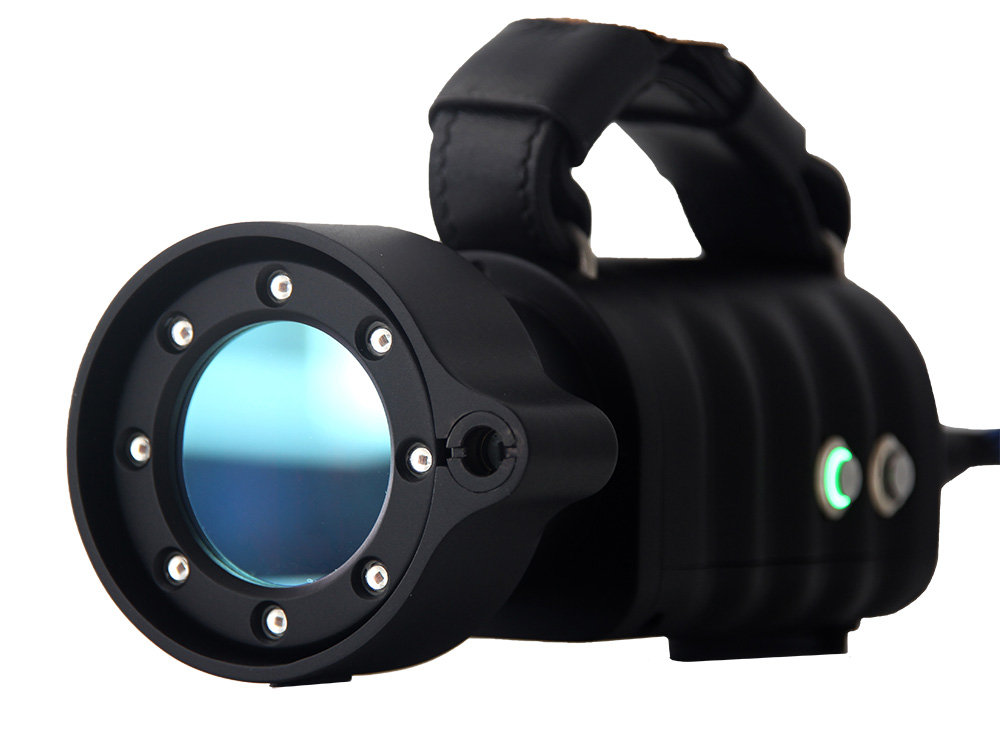

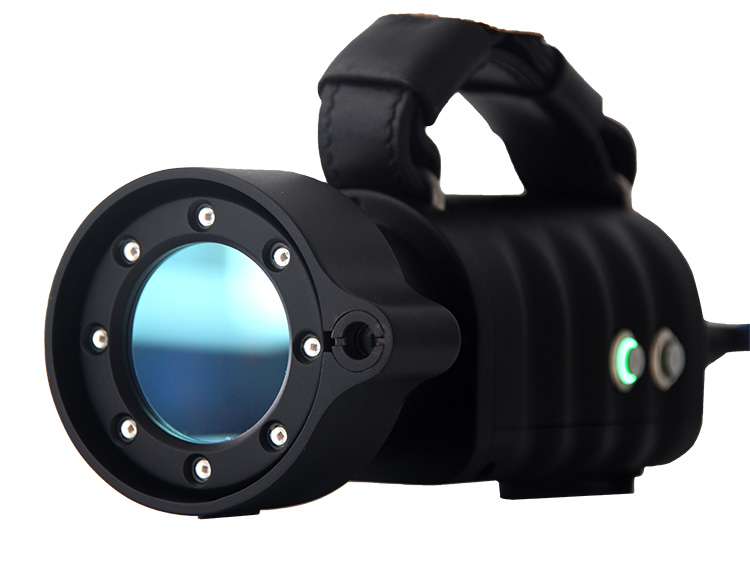

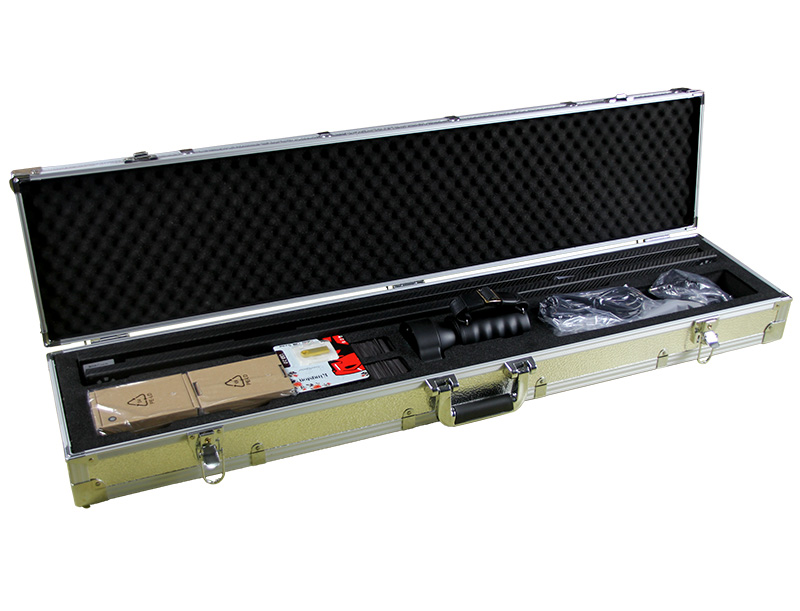

The MSCAN photogrammetry system using high resolution camera to shoot some 2d images and iterate it, calculate the 3d coordinate value and obtain the 3d data and 3d coordinate.

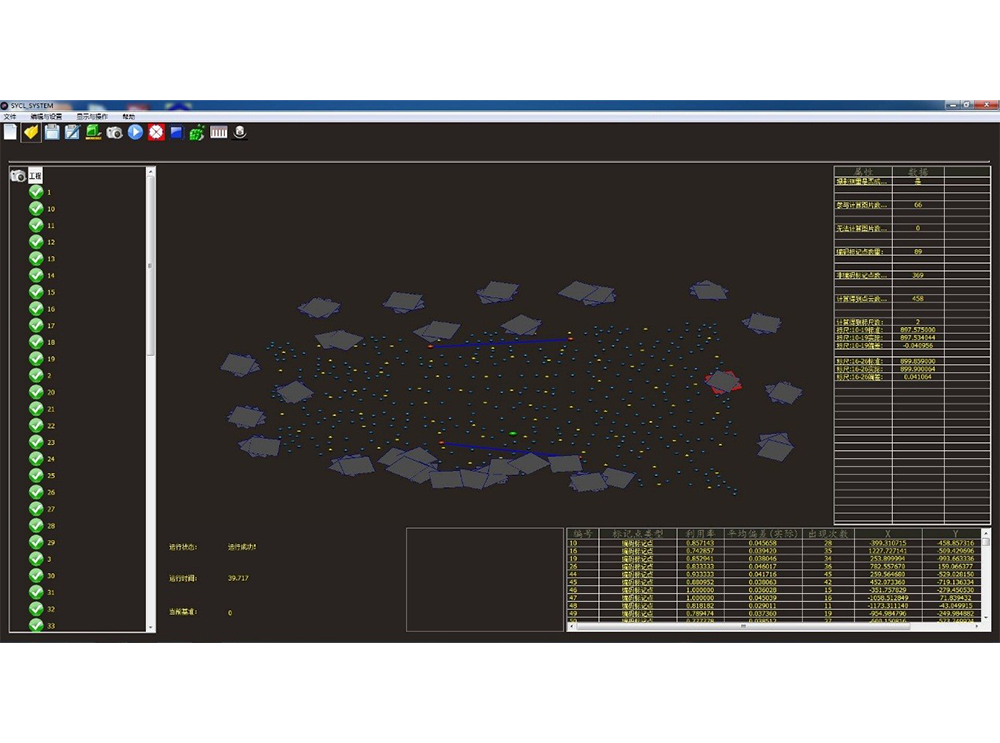

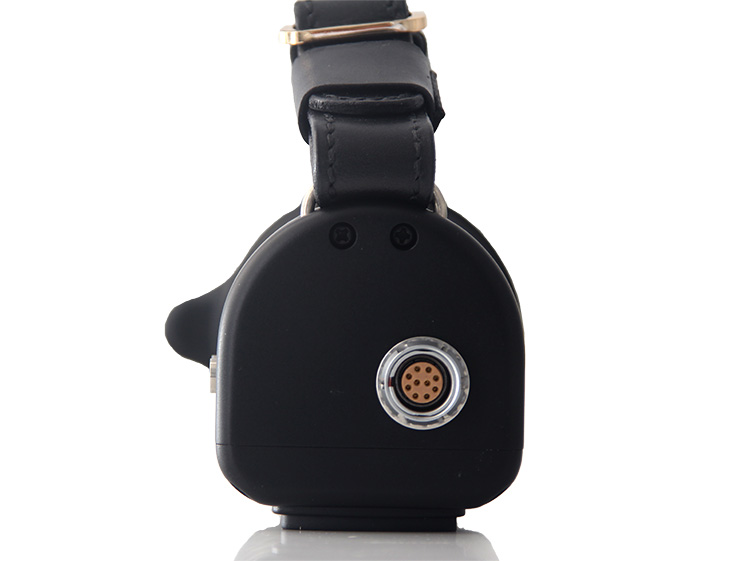

Items | MSCAN |
Physical characteristics | |
Weight | ≤0.5kg |
Dimensions | 180×80×60mm |
Source attribute | |
Light source categories | LED光 |
Auxiliary light source | Ⅱlaser light（eyes safe） |
Scanner properties | |
Camera type | Industrial cameras （not SLR camera） |
Lens type | Industrial lens （ not SLR camera ） |
Scan | |
Scan mode | Real-time calculate and real -time display |
Volume accuracy | 0.025mm/m |
Interface characteristics | |
Physical interface | Data collection lines |
Data transmission interface | Gigabit network |
Out-put | .mk2、.igs etc. |
Environmental parameters | |
Operating temperature range | -10~40℃ |
Operating humidity range （ Non-condensing ） | 10%~90% |

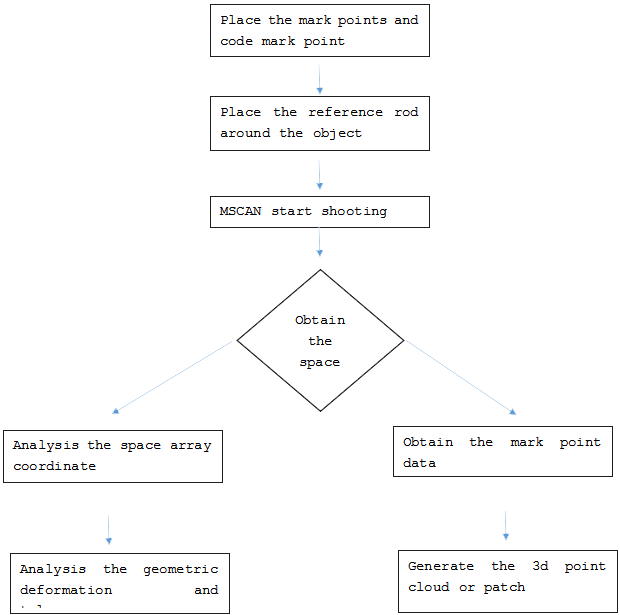

The MSCAN usually be used in measuring and positioning the large objects. The MSCAN can work with the HSCAN to decrease the accumulative error. And it can also work individual to measure the dimension and geometric deformation of the large objects.
Using the high precision industrial cameras as a collecting unit，and the aperture and focal length have been set before sell to ensure the accuracy. The good interactive design also avoids the engineer to misuse the camera and makes parameters deviate and affecting the accuracy. Can realize long-term stability and efficient working. The data can be real-time transfer.
Precision measurement：high accuracy，the Volume accuracy can up to 0.025mm/m
Stably Transmission: data transfer with gigabit network and the speed can be up to 1Gbps.
Auxiliary light source：start the light to help display the shooting range
Self-positioning： MSCAN is a data collect system, and also its self-positioning system, which means that does not need External tracking or positioning device。
Lightweight and flexible：the device is lighter than 0.5kg
The 3D scanner HSCAN system has the following applications in the automotive industry: 1 car design and styling Clay modeling stage: to accurately obtain the small proportion of clay model data, such as surface, adhesive tape cutting line, allowing designers to quickly build 3D model of high quality, provide good data base for the milling mechanism to make 1:1 full size model with high accuracy, greatly reduce the model making time. 2 car supplier quality control and quality inspection Processing quality of automotive testing, the implementation of quality control. At the same time, can also provide the qualified suppliers of goods processing quality inspection checks. 3 car making and modification The first to detect finished parts, and the control design for the test or comparison with CAD file to ensure that all parts of the exact cause of manufacturing or correctly identify potential defects. Is the car modification especially some customization, modification parts must be designed to replace the original parts and general, 3D data acquisition original parts by three-dimensional scanning, can ensure that the components can be the perfect replacement parts. 4 auto parts supply For many auto parts manufacturers, 3D data are often unable to get parts. The 3D data parts using HSCN 3D scanner can easily obtain complex model, so as to quickly provide the parts required by the market selling models. Analysis of 5 vehicle test Can the vehicle test results by using HSCAN series 3D scanner (such as fatigue test, impact test etc.) are analyzed, detailed displacement, deformation analysis, put forward specific suggestions for improvement, so as to improve the quality of automobile design. 6 auto parts Manufacture of HSCAN scanner is also widely used in auto parts, such as automobile bumper, dashboard, foot and car seat. 7 auto scan The Hscan scanner can play an important role in the field of vehicle scanning.
For the overall measurement of aircraft and ships and the design and testing of important parts, but also for stress analysis and assembly design.
SCAN scanner is applied to 3D modeling of hydro turbine blade and scale model, which can help to control the quality of production and manufacture. At the same time, HSCAN scanner is also used in power generation equipment repair and life evaluation.
Construction machinery and parts modeling complex, high precision requirements, scanning process there are many difficult to scan dead angle, HSCAN scanner flexible operation, in scanning complex workpiece advantage is particularly obvious.
China is a manufacturing country, in recent years, the mold industry has been the rapid development of technology, more and more high precision mold, mold mold is more and more complex, more and more large size, the need to continuously improve the supporting technology and equipment. HSCAN scanner can be widely used in reverse modeling, mold design, mold inspection and die repair and other aspects. "src="
HSCAN scanner can be used for the inspection of products, molds and gages to provide inspection standards for product quality improvement. At the same time, HSCAN scanner in scanning large workpiece advantage is particularly obvious. "src="
HSCAN scanner work on the environment and lighting without special requirements, in the open air or even direct sunlight, can also work normally. These features can ensure the HSCAN scanner can be used in almost unlimited cultural relics such as the beautiful stone brick arch 3D modeling. HSCAN scanner can also be applied in wood carving, stone carving and other carving industries, especially the modeling of complex three-dimensional carving. Scanner obtained three-dimensional data can be directly input to the engraving machine, to achieve rapid application from modeling to carving production. "src="
