The question is the spring-back of the wheel cover. Rebounding is one of the most important defects of sheet metal forming processes, it seriously affects the quality of punching and dimensional accuracy, which is hard to overcome during the manufacturing process. It can’t be test by traditional way, so the product can’t be adjust.
Step1. Using the Global MSCAN to obtain its position points

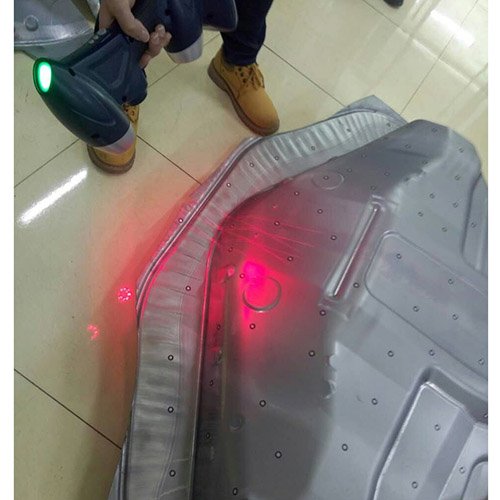

Step2. Cooperate with the hand held scanner to obtain 3d data

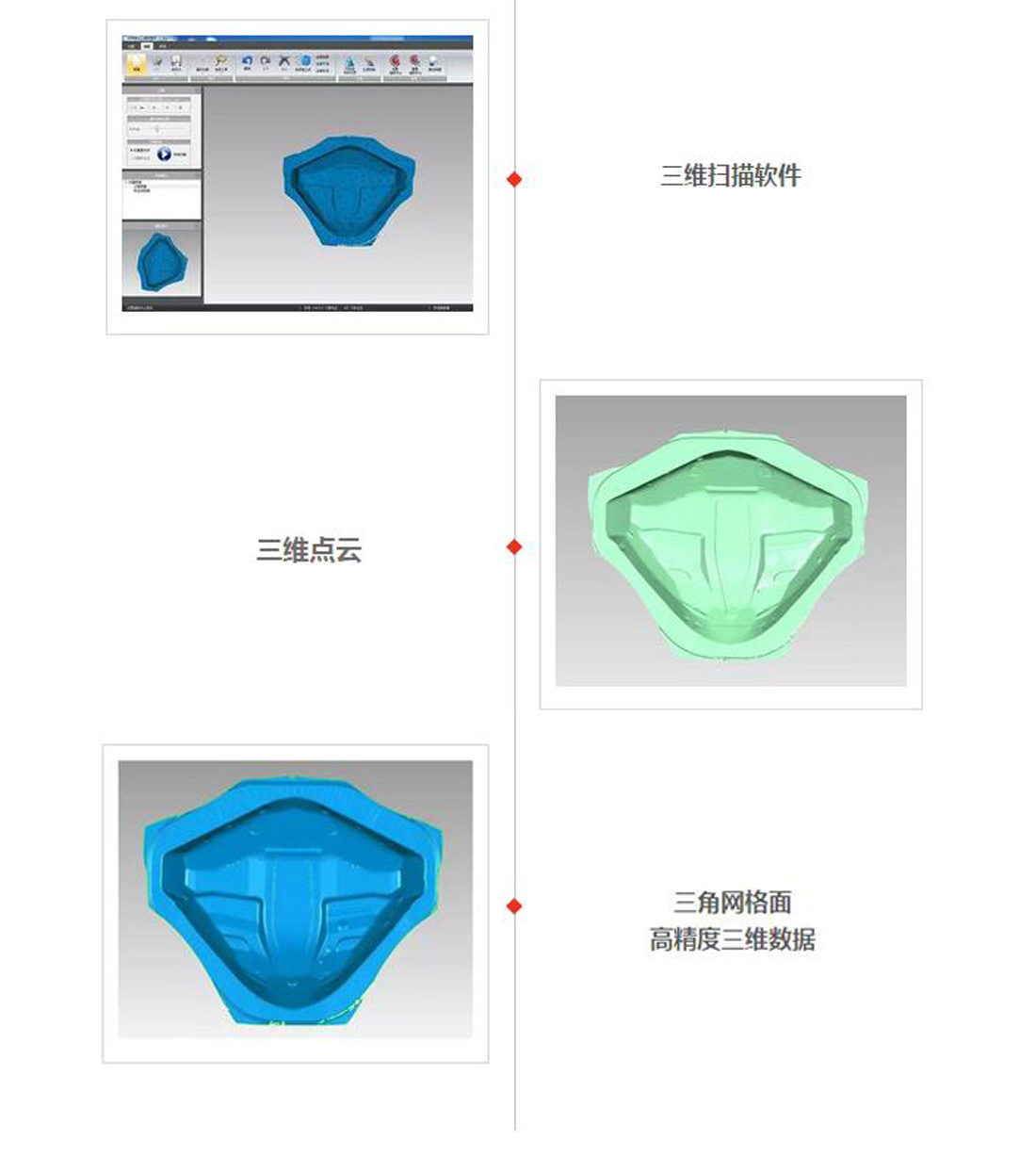

Step3. Compare the scanner 3d data with its digital analog and do the analyze
Step4. Adjust the deviation and improve the quality 。

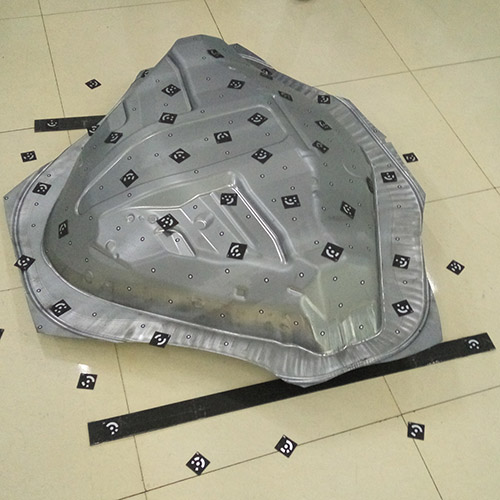

5minutes for mark points

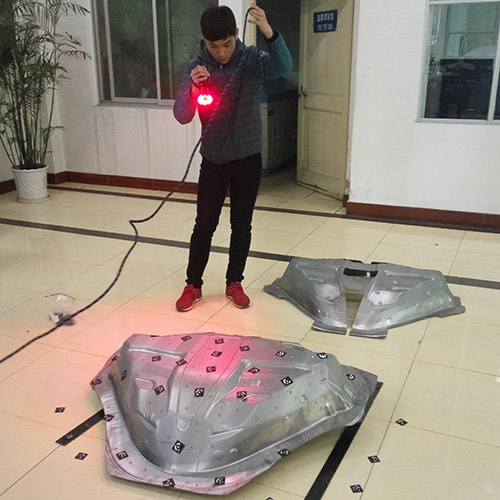

5minutes for Global SCAN
10minutes for scan

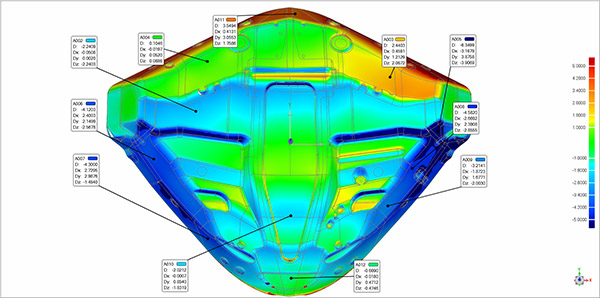

Digital and analog detection results
Size deviation comparison

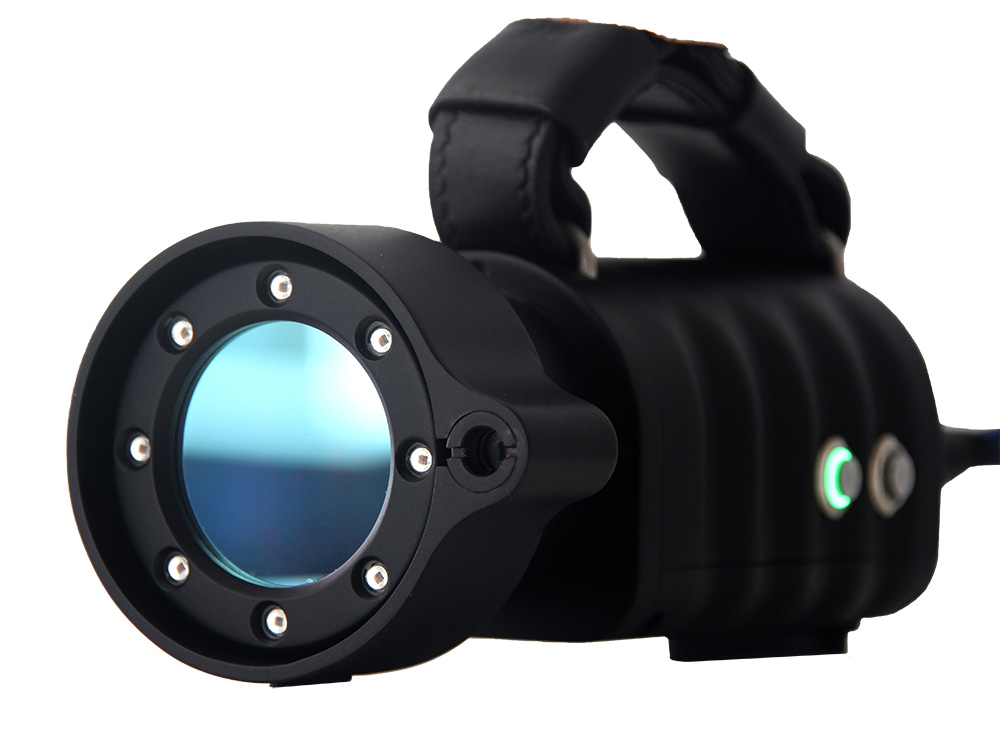

HSCAN 331 can scan the wheel cover in 20minutes. It has well adaptability and high accuracy. And the environment has no influence to the scanner. It decrease the working time and test cost, provide a high efficiency support.
