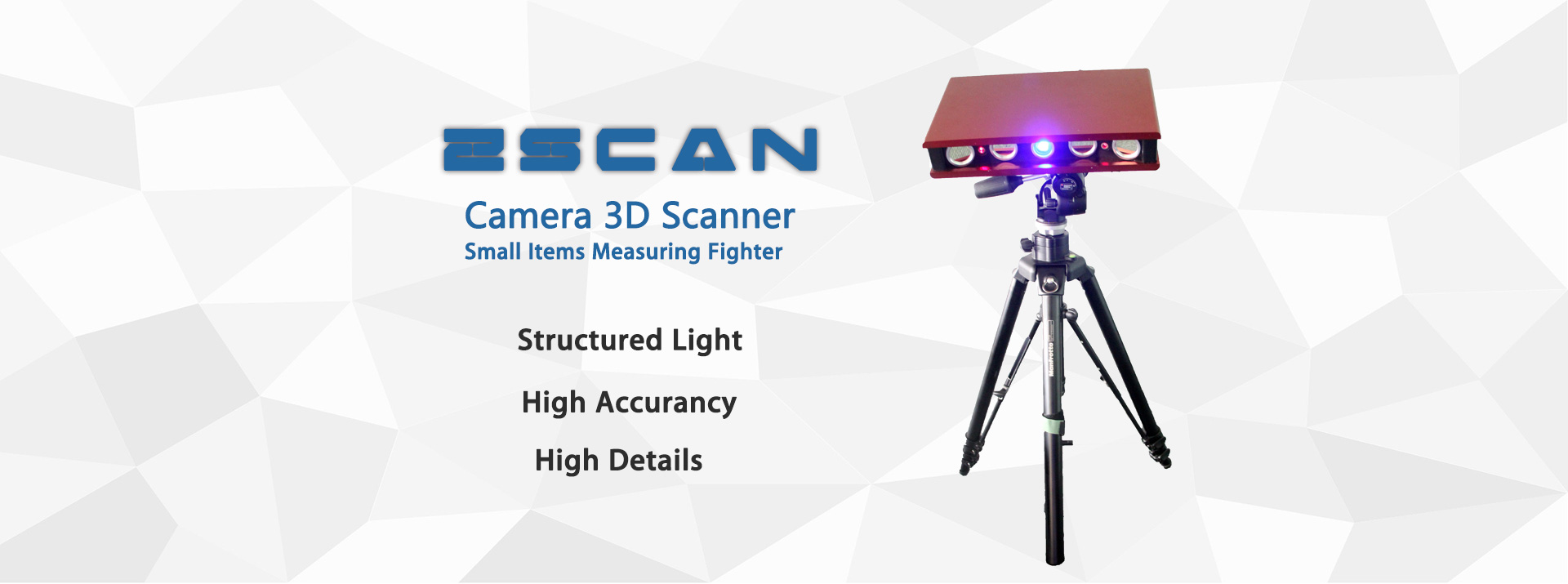

ZSCAN photo scanner combines the structured light technology, phase measurement, computer vision technology of complex 3D non-contact measurement, and scan with blue ray raster. Support automatic stitching. It has high efficiency, long term service time and high accuracy. Especially suit to scan those has high requirement about details.
Items | ZSCAN-Q |
Physical characteristics | |
weight |
|
Dimensions | 360mm×185mm×70mm |
Source attribute | |
Light source categories | LED(蓝光) |
Single grating projection time | ≤1s，130W Pixel |
Scanner properties | |
Scan type | Double eyes |
The average point spacing | 0.15mm |
single scan area | 200mm×150mm或100mm×75mm |
resolution | 130W /300W/500W Pixel |
Scan | |
Scan mode | Non-contact surface scan |
Single precision | Up to0.005mm(100mm×75mm视野) 0.015mm(200mm×150mm视野) |
Splicing way | Automatic splice |
Interface characteristics | |
Physical interface | Power cord ， Data collection lines |
Data transmission interface | USB2.0 |
outputs | Form the STL default output forma. A variety of standard data file format output ， Compatible with a variety of CAD software （Catia、Proe 、UG、Geomagic、Imagewave等） |
Environmental parameters | |
Operating temperature range | -10-45℃ |
Operating humidity range （ Non-condensing ） | <95% |
Camera type three-dimensional scanner uses a structure of optical non-contact measurement principle, structure measurement of grating projection device of projection number encoding picture of a particular light on the object to be measured, two camera angle synchronous recovery of the image, then the image decoding and phase calculation, and using the matching technology, triangle measurement principle, solution two calculate the 3D coordinates of the camera as the pixel area of the public. Camera pixel devices used by the different scanning speed and the details of differences, ZSCAN-D camera type three-dimensional scanner according to customer demand for custom camera models, with the optimal solution cost to provide customers with the best equipment and solutions.
Large depth of field：Suit not only normal objects, but also those high depth of field objects；
High precision：130W~500Wexl high configuration camera;
Non-contact surface scan：Using photographic theory to do the non-contact optical scanning，obtain 3d data. Meet measurement requirements for soft, easily deformable objects；
Surface scan mode:scanning a three-dimensional surface, to obtain theentire surfacethree-dimensional data. The measuring point spread high density and very regular.
Marks points stitching automatic：Measurements can be fully automatic splicing，objects can be arbitrarily flip and move.
Low demand for environment：Normal ambient light does not affect the scanning system，and the high precision data can be obtained；
Portable：Detachable equipment parts easily, covers a small area, and convenient to do measurement.
Out-put format：the point cloud data is ASC、AC format ，can interact data with UG、CATIA、Geomagic、Pro/E、Master CAM and etc software；
Easy to learn：only need 3－5days training.
The 3D scanner HSCAN system has the following applications in the automotive industry: 1 car design and styling Clay modeling stage: to accurately obtain the small proportion of clay model data, such as surface, adhesive tape cutting line, allowing designers to quickly build 3D model of high quality, provide good data base for the milling mechanism to make 1:1 full size model with high accuracy, greatly reduce the model making time. 2 car supplier quality control and quality inspection Processing quality of automotive testing, the implementation of quality control. At the same time, can also provide the qualified suppliers of goods processing quality inspection checks. 3 car making and modification The first to detect finished parts, and the control design for the test or comparison with CAD file to ensure that all parts of the exact cause of manufacturing or correctly identify potential defects. Is the car modification especially some customization, modification parts must be designed to replace the original parts and general, 3D data acquisition original parts by three-dimensional scanning, can ensure that the components can be the perfect replacement parts. 4 auto parts supply For many auto parts manufacturers, 3D data are often unable to get parts. The 3D data parts using HSCN 3D scanner can easily obtain complex model, so as to quickly provide the parts required by the market selling models. Analysis of 5 vehicle test Can the vehicle test results by using HSCAN series 3D scanner (such as fatigue test, impact test etc.) are analyzed, detailed displacement, deformation analysis, put forward specific suggestions for improvement, so as to improve the quality of automobile design. 6 auto parts Manufacture of HSCAN scanner is also widely used in auto parts, such as automobile bumper, dashboard, foot and car seat. 7 auto scan The Hscan scanner can play an important role in the field of vehicle scanning.
Construction machinery and parts modeling complex, high precision requirements, scanning process there are many difficult to scan dead angle, HSCAN scanner flexible operation, in scanning complex workpiece advantage is particularly obvious.
HSCAN scanner work on the environment and lighting without special requirements, in the open air or even direct sunlight, can also work normally. These features can ensure the HSCAN scanner can be used in almost unlimited cultural relics such as the beautiful stone brick arch 3D modeling. HSCAN scanner can also be applied in wood carving, stone carving and other carving industries, especially the modeling of complex three-dimensional carving. Scanner obtained three-dimensional data can be directly input to the engraving machine, to achieve rapid application from modeling to carving production. "src="
China is a manufacturing country, in recent years, the mold industry has been the rapid development of technology, more and more high precision mold, mold mold is more and more complex, more and more large size, the need to continuously improve the supporting technology and equipment. HSCAN scanner can be widely used in reverse modeling, mold design, mold inspection and die repair and other aspects. "src="
HSCAN scanner can be used for the inspection of products, molds and gages to provide inspection standards for product quality improvement. At the same time, HSCAN scanner in scanning large workpiece advantage is particularly obvious. "src="
HSCAN scanner can play a role in project research, discipline construction, student skills training and professional laboratory construction. " /upfiles/2-150R61030453c.JPG
